dV/dt is the amount of voltage change per unit time. The steeper the rising slope of VDS, the more likely it is that the dV/dt failure of the MOSFET will occur.

dV/dt failure is a phenomenon in which the charging current flowing through the parasitic capacitance Cds flows through the base resistor RB when the MOSFET is turned off, causing the parasitic bipolar transistor to conduct, causing a short circuit and causing failure.

Generally speaking, the worse the reverse recovery characteristics are and the steeper the dV/dt slope is, the easier it is to cause MOSFET dV/dt failure.



Features:

• Rated voltage 600Vac
• Reduce dV/dt Star Point – PE
• Compact structure
• Remote connection indicator

Advantage:

• Protect motor windings, insulation and bearings
• Extremely low power loss
• Overheating protection
• Easy to install

Application Market:

• Large motors
• Spindle motor
• Frequency conversion, servo drive (remote application)

The goal of the connector’s impedance transformation is to match the resistance and reactance to achieve maximum transmission power for the load. Both the receiving and transmitting components at both ends of the network can provide efficiency and sensitivity. To realize this function, the use of RJ45 connector with coil is essential.

The basic concept of impedance transformation is that when the impedance between the front-stage circuit and the subsequent-stage circuit does not match, the transmission efficiency between the front-stage circuit as the signal source and the subsequent-stage circuit as the load is not high. Therefore, it is necessary to use a coiled RJ45 connection machine to complete the impedance transformation without loss or low loss.

The impedance conversion function can be achieved by using a transformer. The simplest way is to change the number of coil turns.

The RJ45 connector with coil can convert the discontinuous signal step transition into a smooth continuous transition through the impedance conversion function. This conversion is linear, so a good match can be achieved, providing better bandwidth.

Through the impedance conversion function, combined with filter circuits and coupling circuits, the operating frequency range of network components can be increased.

For details and type, please visit our website pages,

This month we recommend you new products to give your engineers new knowledge and understanding in design and application.

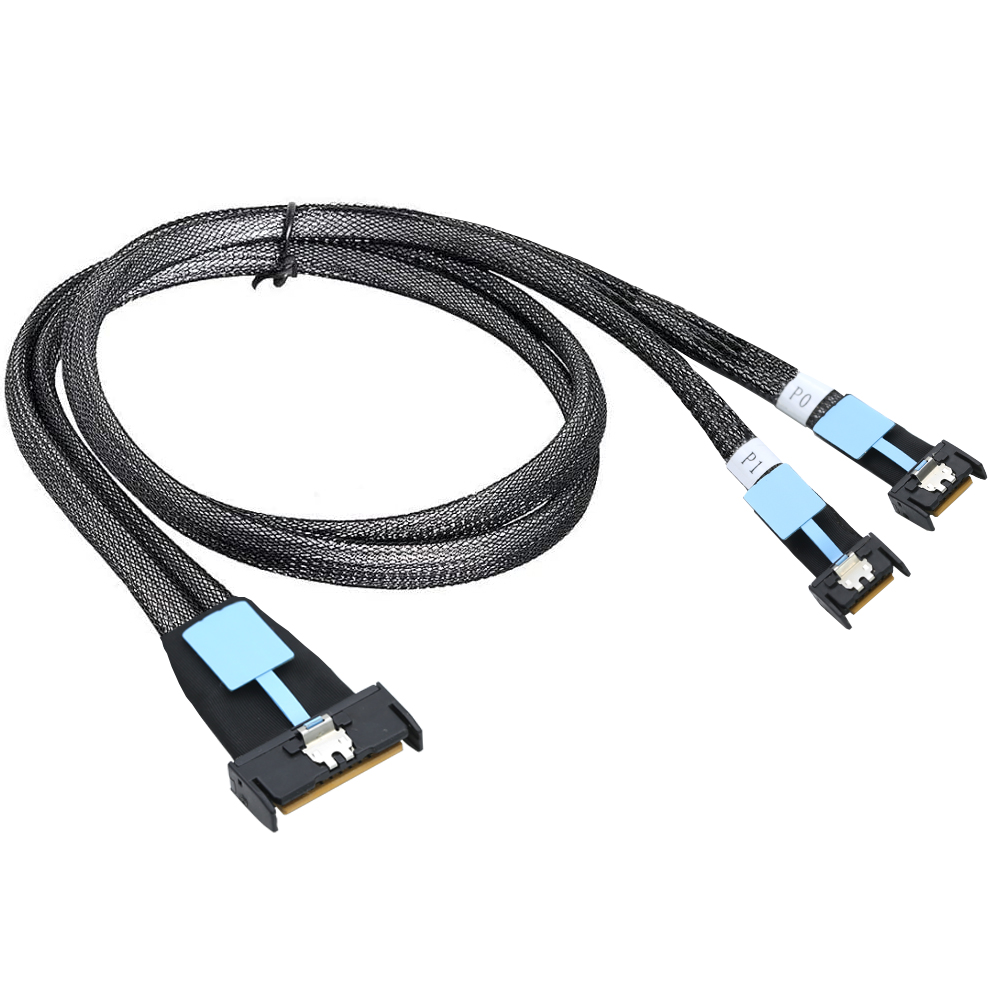

Mini Cool Edge IO (MCIO) 85 Ohm X8 X16 vertical socket supports the building block architecture in system design and can connect PCBs with different functions.

Features

• Provide flexibility for where/how signals are used in the system
• Replaces PCB traces and PCB connector interfaces to provide higher performance channels
• In-line, right-angle and lateral outlet cable options available for custom wiring
• Complete product portfolio supports hybrid cable assemblies
• Thin connector design saves space
• MCIO 85 ohm supports PCIe5.0 (32 Gbps) and SAS4 (24 Gbps)
• Multiple cable outlets for cabling functions
• Board mount connector mounting type



The relative pictures are enclosed for kind viewing, drawing and quotation

Will be offered upon request.





Download Our ACC Company Profile for more infomation.

Exclusive stagger conductors guide design reduces near end cross talk Please visit our pages in the PLUG series.

Update three ganged modular jacks, and fiber adaptor.

Wish to have your kind inquiry for new product introduction again, thank you so much!

Transformer LED Modular Jack, similar PULSE SMT products, GIGA with LED and POE or 10G, USB 3.0

According to POE (IEEE 802.3a), it improves the power transmission efficiency to apply power on unused lines.

Wish to have your kind inquiry for new product introduction again, thank you so much!
